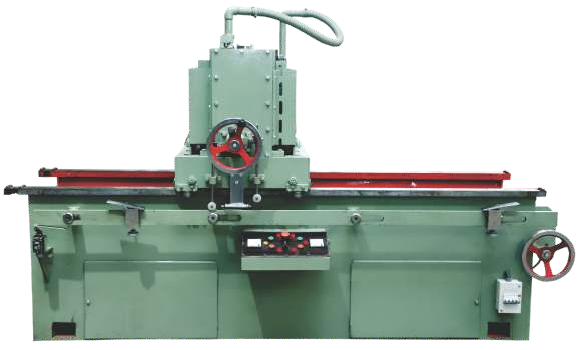

AUTOMATIC KNIFE GRINDER
(4 FEET SIZE)

MODEL : GA-1500

TECHNICAL SPECIFICATION
PARAMETER
Maximum Grinding Length
1525mm
Size of Worktable Size(Length*Width)
1525 x 180mm
Grinding Speed
15m/min
Angle of Worktable Rotation
0 -±90
Type of Transmission
Rack & Pinion Fitted with Belt Pully Gearbox
Power of Grinding Head Motor
5.5 kw
Knife Holdings
Manual Clamping Bed
Grinding Wheel
200 Diameter Chuck Diameter
Grinding Segment
Fitted with 6 Nos.
Max Workpiece Height
105 mm
Total Power
6.75 kw
FEATURES
  • Heavy Duty Constructions
  • Mechanical Clamping System
  • Easy to operate and user friendly
  • Low Friction Slide Ways ensuring Long life
  • Automatic Knife Grinder/ Re-sharpening Machine
  • Suitable for Face/ Core Veneer cutting Knife Re-Grinding
Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
