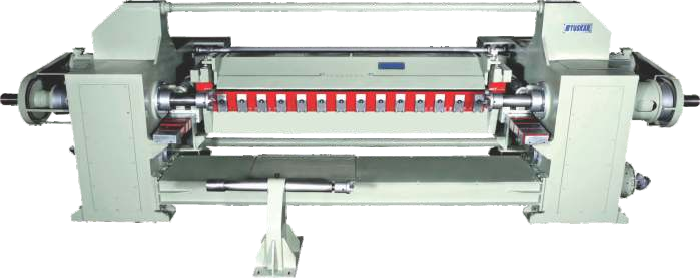

ROTARY VENEER LATHE

(8 FEET SIZE)

MODEL : RVT-150

TECHNICAL SPECIFICATION

PARAMETER

Cutting Knife Length

2750 mm (108" inch)

Max. Log Diameter

1400 mm

Diff. Veneer Thickness

0.25 mm - 3.50 mm (Standard)

Min. Block Length to be peeled

1350 mm (Using Spindle Attachment Stand)

Min. End Core Diameter

130 mm

Max. Spindle revolution

0-150 rpm. (Variable Speed Drive System)

Total Power Required

100 Kw (Main Motor 75 kw)

FEATURES

Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
