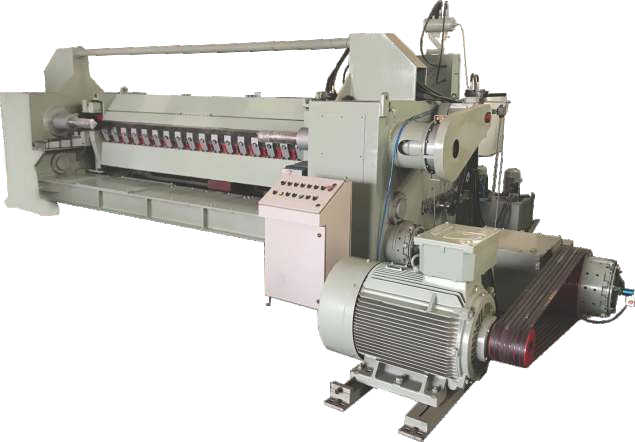

ROTARY VENEER LATHE
(10 FEET SIZE)

MODEL : RVT-1500

TECHNICAL SPECIFICATION
PARAMETER
Veneer Cutting Knife Length
3300 mm
Swing dia. (Max. Log Diameter)
1400 mm
Diff. Veneer Thickness
0.25 mm - 3.50 mm (Standard)
Min. Block Length to be peeled
1950 mm (Using Spindle Attachment Stand)
Min. end core Diameter
150 mm
Max. Spindle revolution
0 - 150 rpm (Variable Speed Drive System)
Total Power Required
135 Kw
FEATURES
  • Heavy Duty Construction
  • Easy to operate and user friendly
  • Inbuilt Variable High Speed Technology
  • Uses Hydraulic and Pneumatic functions
  • Ideal for Peeling Large Diameter Logs
  • Chucking by Screw Type motorised spindle
  • Unique design to suit Face and Core veneer production line
  • Suitable for Tropical and Plantation Wood Species
Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
