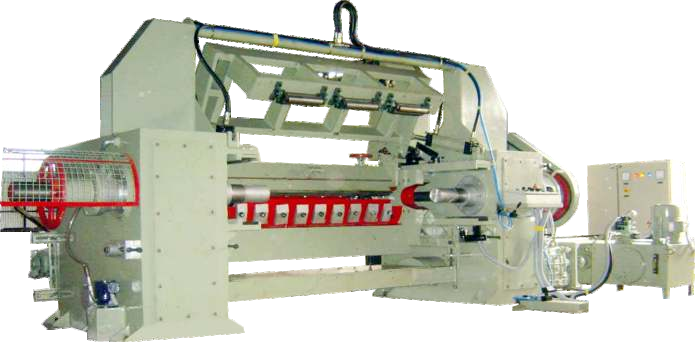

ROTARY VENEER LATHE
(4 FEET SIZE)

MODEL : RVT-50

TECHNICAL SPECIFICATION
PARAMETER
Cutting Knife Length
1270 mm
Max. Log Diameter
750 mm
Diff. Veneer Thickness
1.00 mm - 3.00 mm
Min. Block Length to be Peeled
950 mm
Min. End Core Diameter
50 mm
Max. Spindle Revolution
300 rpm (5 Speed Gear Box System)
Total Power Required
34 kw (22.5 kw Main Motor)
FEATURES
  • Heavy Duty Construction.
  • High Speed Technology
  • Uses Back-Up Roll System.
  • Uses Hydraulic and Pneumatic functions
  • Specially designed for peeling medium and large diameter logs
  • Unique design to suit core veneer production line
  • Suitable for Tropical and Plantation wood species
Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
