Spindleless Log Peeling Machine 108

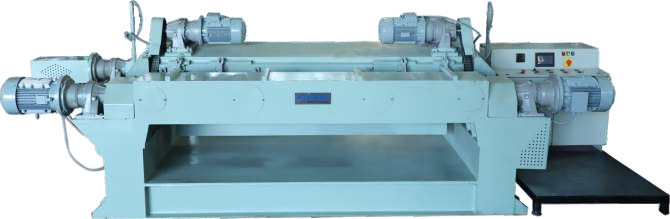

108" SPINDLELESS LOG PEELING MACHINE

(8 FEET SIZE)

MODEL : SL-108

108" LOG PEELING MACHINE FOR HIGHEST ACCURACY

TECHNICAL SPECIFICATION

PARAMETER

Cutting Knife Length

2800 mm

Double Roller Power

11kw x 2 (AC Induction Motor)

Single Roller Power

11kw x 2 (AC Induction Motor)

Feed Screw Power

15 kw (Servo Motor)

Rotary Clipper Power

7.5 kw(AC Induction Motor)

Rubber Roller Power

7.5 kw

Conveyor Power

5kw

Total Power

79kw

Roller Gear Box

Heavy Duty Bonfiglioli Planetary Gear Box

Screw Feed Gear Box

Heavy Duty Bonfiglioli Planetary Gear Box

Clipper Gear Box

Heavy Duty Bonfiglioli Planetary Gear Box

Rubber Roller Gear Box

Heavy Duty Bonfiglioli Planetary Gear Box

Veneer Output Speed

50-80 m/min Adjustable

Feed Screw Type

Hiwin Ball Screw (80mm) Diameter

Max Log Diameter

452 mm

Min. End Log Diameter

35 mm

Diff. Veneer Thickness

0.4-4.0

Cutting Length

430 - 2500 mm

Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
