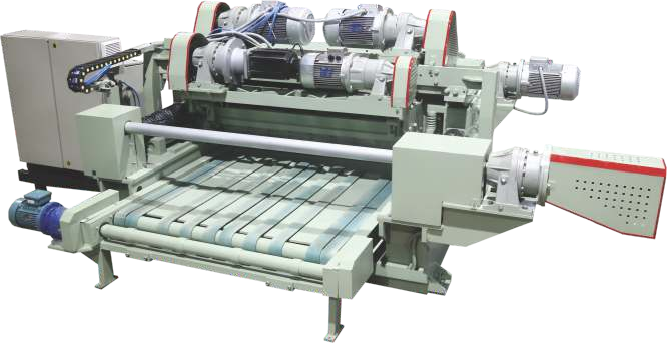

125 (m/min) High Speed Spindleless Log Peeling Machine

125 (M/MIN) HIGH SPEED SPINDLELESS LOG PEELING MACHINE

(4 FEET SIZE)

MODEL : SL-125s

WORLD'S MOST RELIABLE CNC LOG PEELING MACHINE

TECHNICAL SPECIFICATION

PARAMETER

Cutting Knife Length

1422 mm

Double Roller Power

7.5 kw x 2 (AC Induction Motor)

Single Roller Power

7.5 kw x 2 (AC Induction Motor)

Feed Screw Power

7.5 kw (Servo Motor)

Rotary Clipper Power

7.5 kw (Servo Motor)

Conveyer Rubber Roller Power

3.7 kw (AC Induction Motor)

Total Power

50.25 kw

Rollers Gear Box

Bonfiglioli Planetary Gear Box

Feed Screw Gear Box

Bonfiglioli Planetary Gear Box

Clipper Gear Box

Bonfiglioli Planetary Gear Box

Rubber Roller Gear Box

Bonfiglioli Planetary Gear Box

Veneer Line Speed

60 to 125 m/min Adjustable

Feed Screw Type

HIWIN Ball Screw (80mm) Diameter

Max Log Diameter

452 mm

Min. End Log Diameter

23 mm

Diff. Veneer Thickness

0.7 - 3.9 mm

Cutting Length

400-3000 mm

Size of Machine

4572x2150x1600


                                        60KVA Servo Voltage is Required for Voltage Regulation.

                                        3 Nos of Ground Earthing Compulsory

Note : Modifcation in Models can be made without Any Prior Advance Notice for Upgradation Purpose.
